Synology DS1515+ SSD Cache (Read/Write)

As everything is real world has time limit, so does the HDD in my Synology DS1515+, one HDD failed and lost all of the entertainment media.
1515+ got 5 drive bays and had to use a single HDD for entertainment, truth is non of the data I put on synology really matters as its for vmware vSphere HomeLab!

Anyways, stories aside.

Got 2 x Kingston v300 240GB SSD for R/W cache to speed up my Lab. Though 240GB is not listed on Synology compatibility list, but 120GB v300 is listed here.

The Firmware is also different than what is listed for 120Gb v300 (FW: 605ABBF2)
SSD that I got are running on FW: 603ABBF0

I will not go into much details about the IOPS, throughput and all that.
What matters to me is that VM performance has improved to a good extent, nothing jaw dropping, but yes Guest OS is responding fast as compared to before. Got what I was expecting.

One thing that I noticed when using “SSD Cache Advisor” on Synology that I gives a vague message “The memory on your Synology NAS is full so it is not possible to create SSD cache” Though I have 8GB memory installed.
I ran Advisor with/without installed into bays. But it did finally create Cache volume.

There is requirement about RAM that you can read on Synology website here.

Its quite easy to setup Cache, Below are the screenshots.

SCAP-0509

SCAP-0510

SCAP-0511

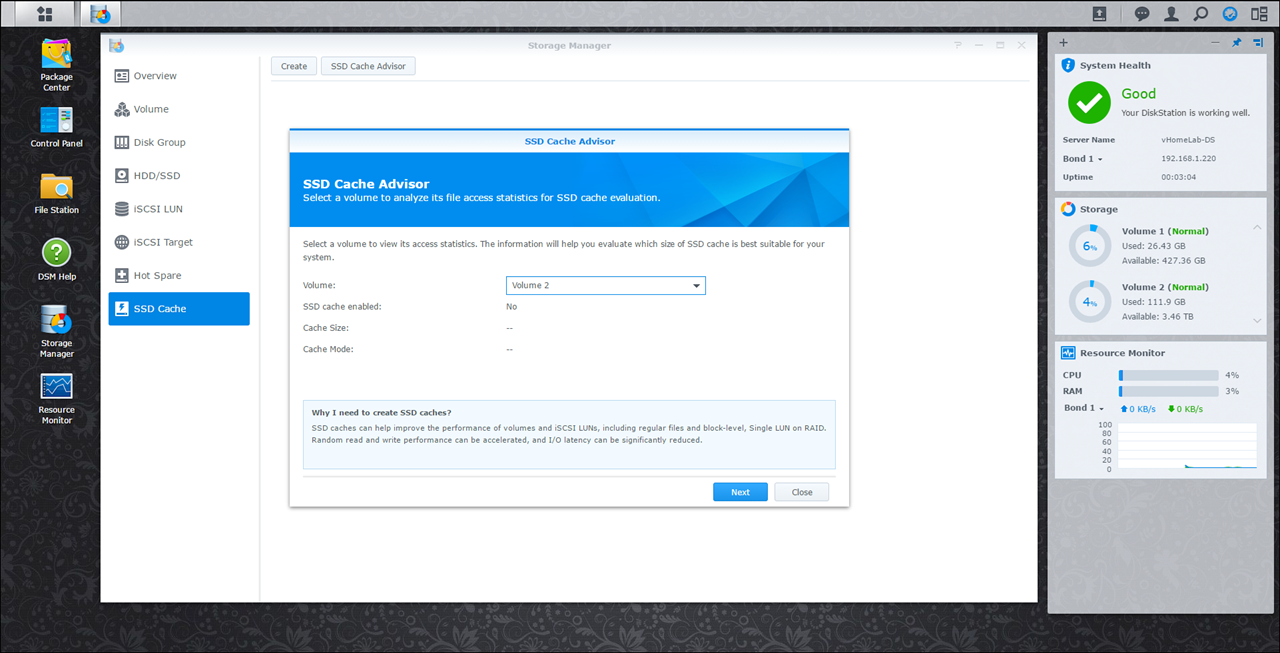

SCAP-0512

SCAP-0513

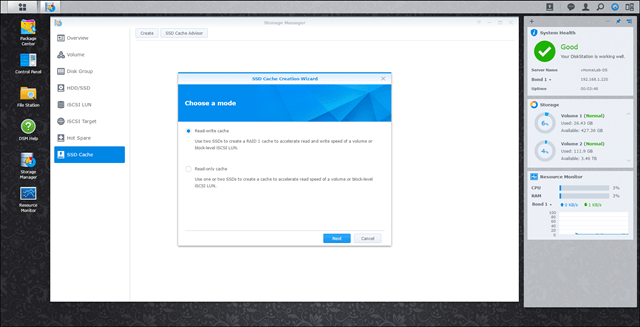

SCAP-0514

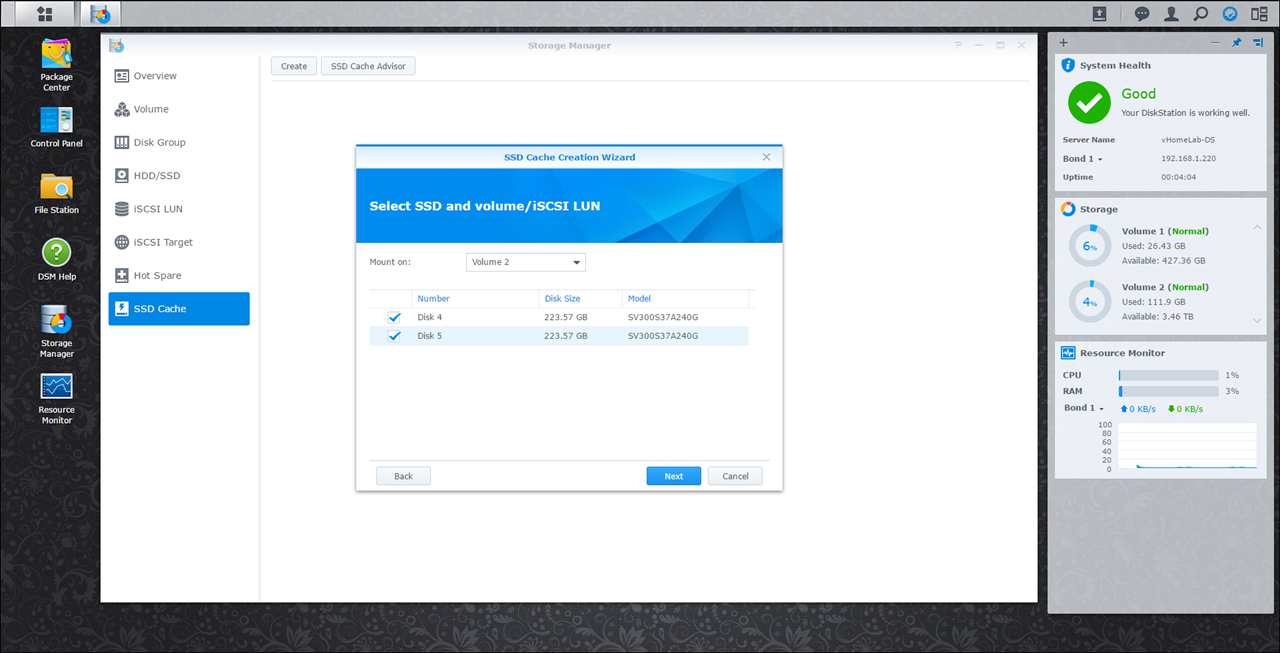

SCAP-0515

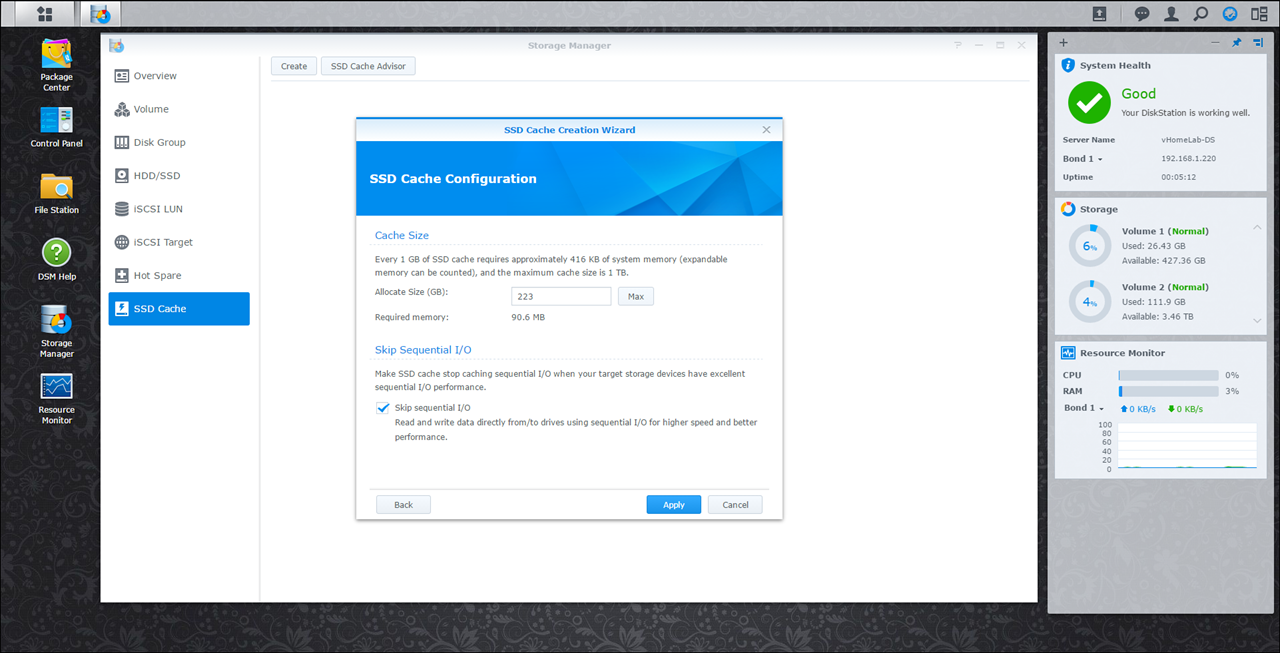

SCAP-0516

SCAP-0517

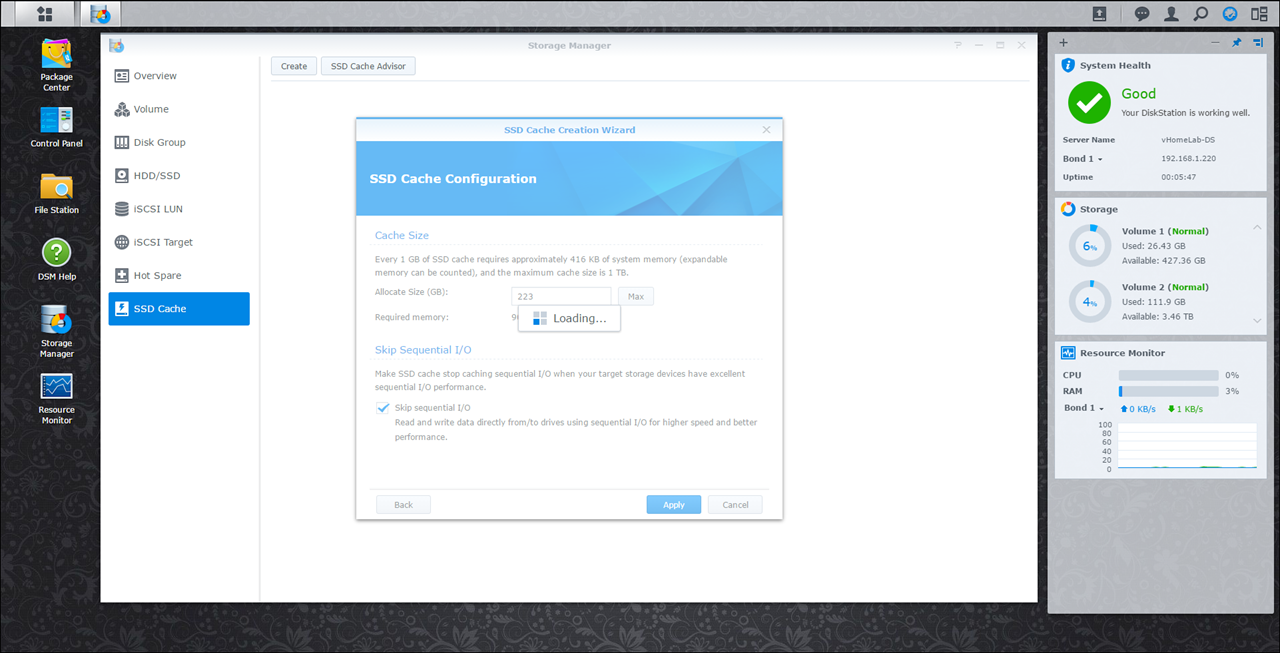

SCAP-0518

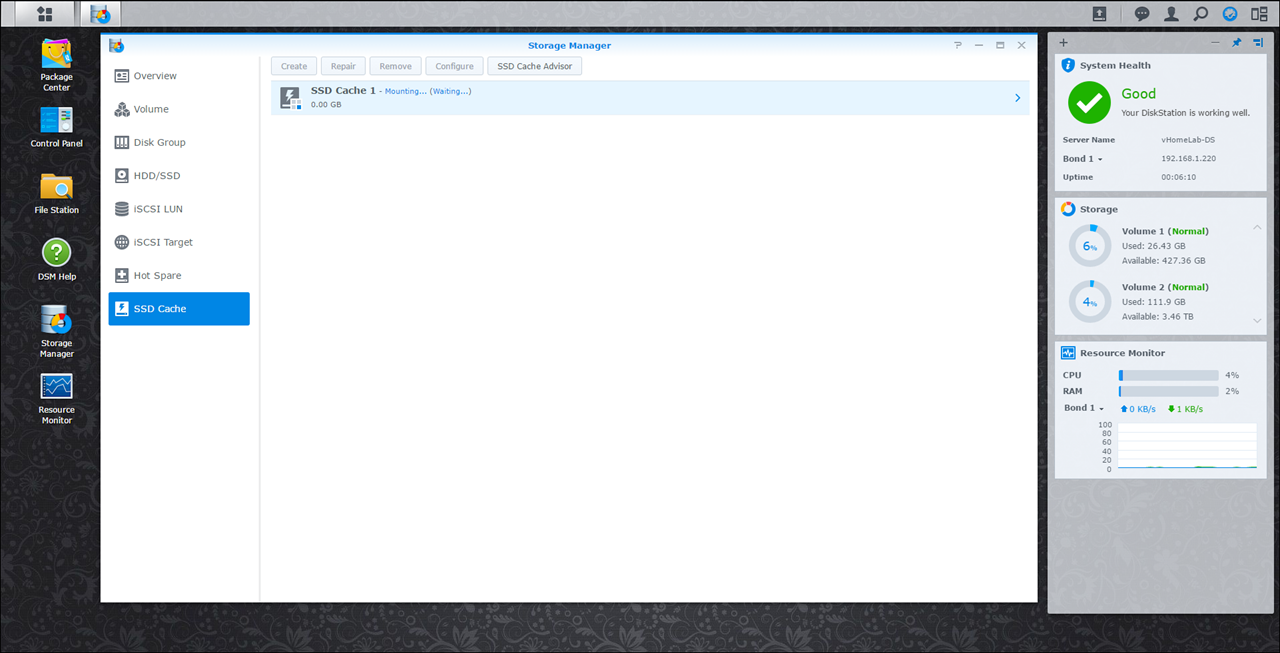

SCAP-0519

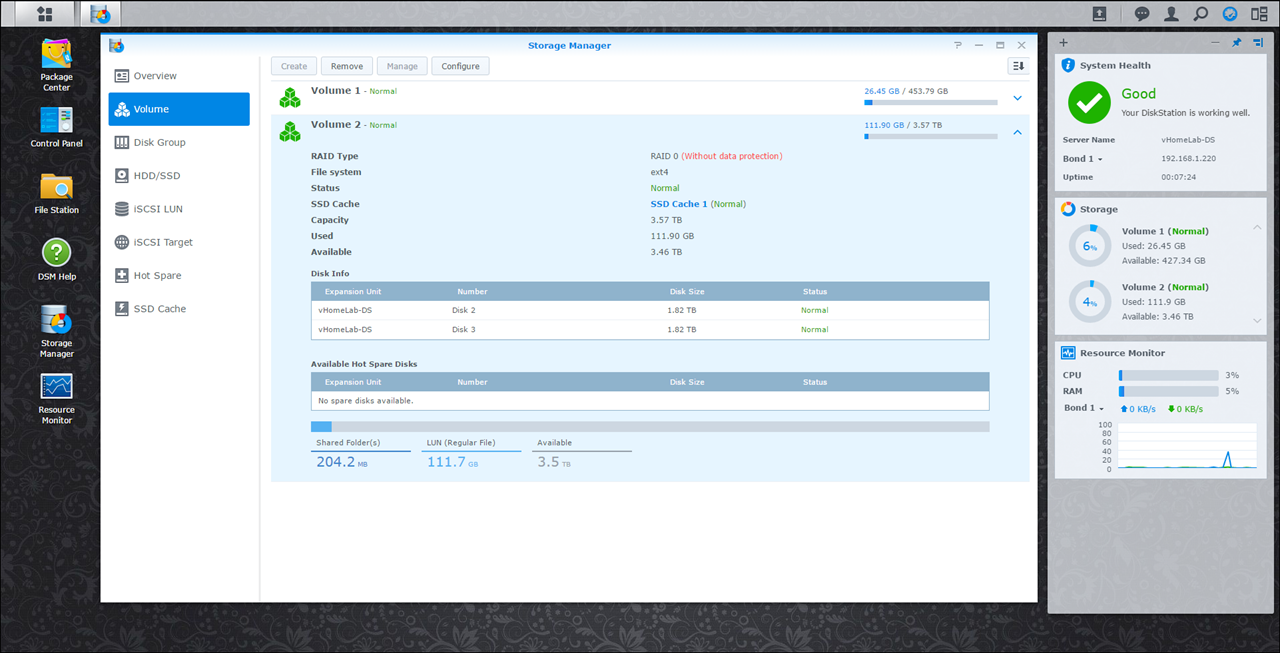

SCAP-0522

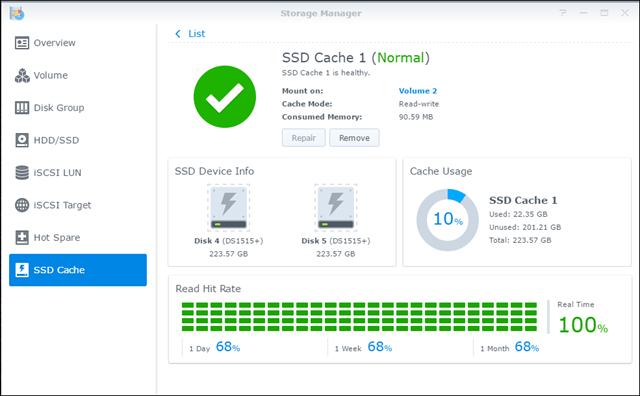

SCAP-0525
